Comprehensive Solution for Urban Drainage Monitoring System
This solution is based on a comprehensive assessment of urban drainage systems. It adopts a multi-level prevention and control design philosophy and utilizes compact, intelligent, and mobile cabinet-style automatic online water quality monitoring systems. These systems enable real-time monitoring of drainage outlets, drainage networks, sewage treatment plants, pumping stations, and river discharge outlets. The solution provides a clear understanding of sewage discharge patterns, rain-sewage mixing conditions, and the impact of rainfall on watersheds/lakes. It offers a comprehensive view of the urban drainage system, achieving full-scale monitoring and centralized management of urban drainage systems.
The comprehensive urban drainage monitoring system combines online and manual monitoring. It uses compact, intelligent, low-maintenance, cost-effective, and mobile cabinet-style automatic online water quality monitoring systems to enable unmanned, real-time monitoring of urban drainage networks. This system is fully integrated with the existing monitoring data of smart city platforms.

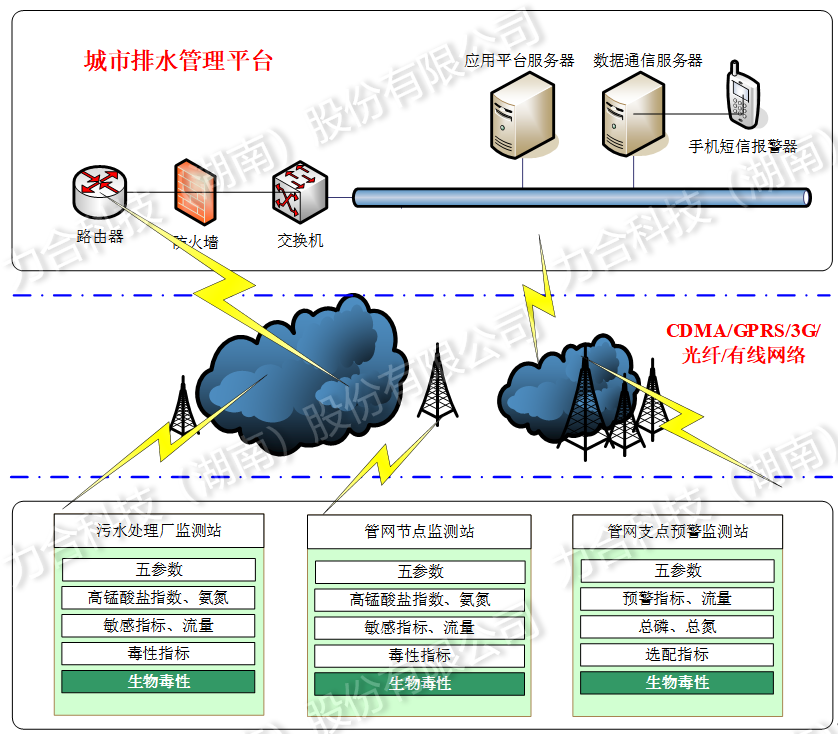

Intelligent Sensing Layer:
Responsible for collecting on-site data, including monitoring parameters from sewage treatment plants, network nodes, and network branches. It provides massive, accurate data to support pollution source monitoring, subsequent data processing, and decision-making actions.
Network Transmission Layer:
Ensures seamless connectivity and comprehensive coverage through a secure and reliable network cluster. It rapidly and efficiently transmits the data collected by the sensing layer to the upper layers with minimal loss.
Data Service and Application Layer:
Stores the collected data in a central database, provides application service interfaces via the application platform server, and sends early warning messages to different users through a data communication server. This enables real-time monitoring and early warning functionality for the system.
● Compact, automated, and unmanned water quality online monitoring system:
Capable of receiving various commands from the central management platform, allowing remote configuration, calibration, emergency monitoring, and control of access systems in real-time.
● Advanced water quality monitoring and early warning system:
Establishes a complete and intelligent water quality monitoring network, achieving "intelligent" construction of automatic monitoring stations and "zero delay" in monitoring and early warnings.
●Fixed Water Quality Monitoring Stations
●Outdoor Small Shed Water Quality Monitoring Stations
●Integrated Cabinet Water Quality Monitoring Stations
●Floating Water Quality Monitoring Stations
●Multi-channel Automated Water Quality Laboratories
●Intelligent Sampling Terminals
